Learn more about Dual Slide

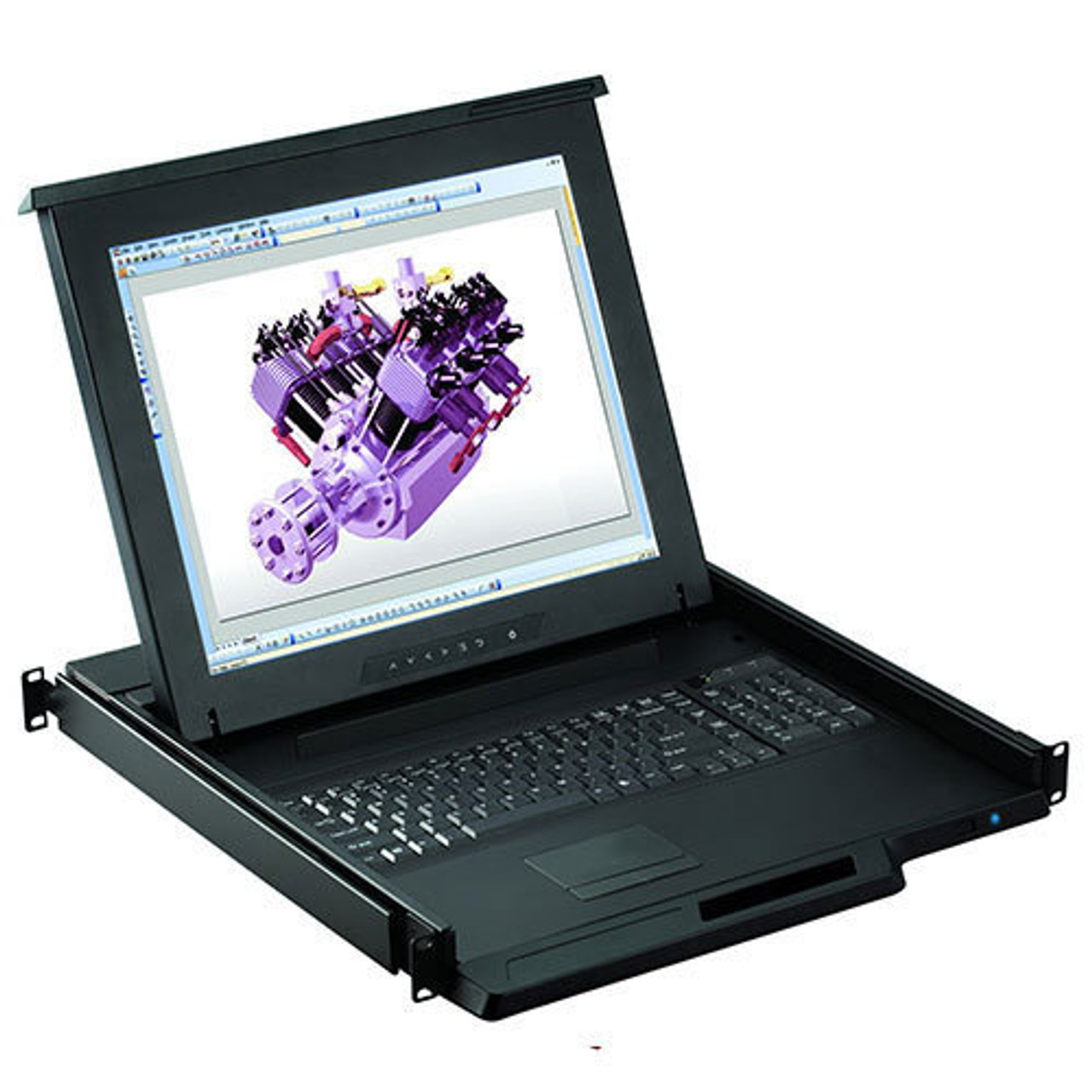

These dual slide LCD rack mount units feature flip-up design on adjustable brackets. Leave the rackmount KVM monitor up and slide the keyboard in, or keyboard only while the monitor is flat. With a dual slide KVM LCD Combo you have the ultimate flexibility. Some of these units include feature rich options such as:

  • Keep Alive feature safeguards server for power loss to the switch.
  • Designed for IBM, Dell, HP, Compaq, and Sun/iMac with USB/PS2 adapter. OK to mix platforms.
  • Built-in microprocessor emulation for each port boots up process.
  • Hot-pluggable when adding or removing PC.
  • Name your server up to 16 characters.
  • Scan mode: monitor your servers at 5-99 second intervals.
  • Supports eight character password protection and search PC server name.
  • Cascades for use with up to 128 servers.
  • VGA, keyboard & mouse all-in-one by 15 pin HDB connector.
  • No software needed ... plug and play.
  • Sliderails have two fixed positions to prevent movement of the keyboard.
  • Short depth: 18.9"
  • Slide away flip-up monitor operates independently from keyboard.
  • Built-in on screen display controlled by integral membrane switches.
  • 104 key keyboard with touchpad.
  • SUN Micro or MAC keyboard options available. Call toll free (800) 352-6631 and speak with your account manager.
  • Standard D-sub 15-pin VGA input connect
  • 12V 5a remote power adapter (single power source) standard.
  • All mounting hardware included.
  • 8x 6 ft cables included with units with 8 port KVMs; 16x 6 ft cables with 16 port KVMs.
  • LCD Monitor Resolutions:
    17" - 1280 x 1024 - 50,000hrs MTBF
    19" - 1280 x 1024 - 30,000hrs MTBF
