Pj744Fs N4X Fiberglass Wallmount Encl - 6.7 x 3.9 x 3.9 - Fiberglass

Pj744Fs N4X Fiberglass Wallmount Encl - 6.7 x 3.9 x 3.9 - Fiberglass

SKU: PJ744FS | by Hammond Manufacturing
$61.55
Rackmount Solutions

Pj744Fs N4X Fiberglass Wallmount Encl - 6.7 x 3.9 x 3.9 - Fiberglass

SKU: PJ744FS | by Hammond Manufacturing
$61.55
Shipping Method: Small Package (UPS)
* Estimated Ship Date:

* Some exclusions apply. For an up to date shipping estimate contact sales@rackmountsolutions.net

Need help? Talk directly to our experts! 1-800-352-6631

Norton Secured

Product Information

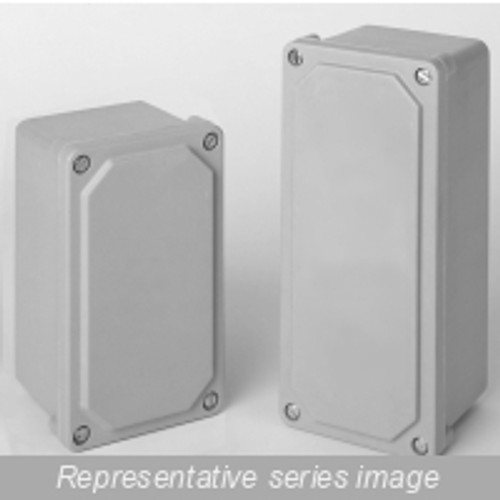

N4X Fiberglass Wallmount Encl - 6.7 x 3.9 x 3.9 - Fiberglass
  • Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • Threaded brass inserts are provided for optional inner panel.
  • Cover is fastened with captive stainless steel screws in threaded brass inserts.
  • Captive oil-resistant gasket provides a positive seal.
  • Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Available with and without mounting feet.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
  • For corrosion resistance information, please refer to table in Technical Information.

  • Designed for use as instrument enclosures, electric, hydraulic or pneu­matic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or become very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.

USMCA Compliant: Yes
REACH Compliant: Yes
Panel: None
Standards:
  • UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • CSA Type 1, 2, 3, 4, 4X, 12 and 13
  • Complies with
    • NEMA Type 1, 2, 3, 4, 4X, 12 and 13
    • IEC 60529, IP66
