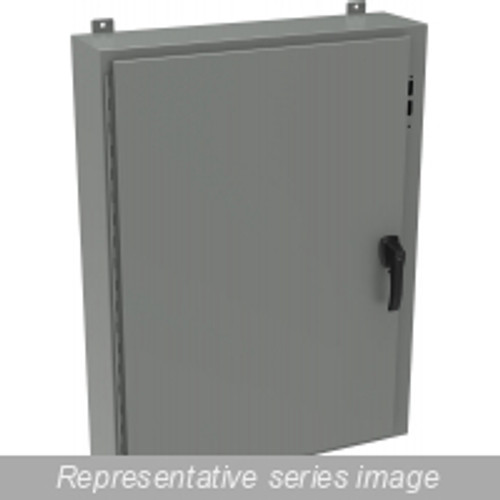

1447Sd10Hk N4 Disconnect Encl w/Panel And Handle - 30 x 21-3/8 x 10 - Steel/Gray

N4 Disconnect Encl w/Panel And Handle - 30 x 21-3/8 x 10 - Steel/Gray

SKU: 1447SD10HK | by Hammond Manufacturing
$820.03
Rackmount Solutions

N4 Disconnect Encl w/Panel And Handle - 30 x 21-3/8 x 10 - Steel/Gray

SKU: 1447SD10HK | by Hammond Manufacturing
$820.03
Shipping Method: LTL Freight
* Estimated Ship Date:

* Some exclusions apply. For an up to date shipping estimate contact sales@rackmountsolutions.net

Need help? Talk directly to our experts! 1-800-352-6631

Norton Secured

Product Information

N4 Disconnect Encl w/panel and Handle - 30 x 21-3/8 x 10 - Steel/Gray
  • Formed 14-gauge steel.
  • Continuously welded seams.
  • Larger sizes include door and body stiffeners.
  • Welded brackets provide for enclosure mounting.
  • Formed lip on enclosure exclude flowing liquids and contaminants.
  • Seamless poured-in place gasket.
  • Cutouts and holes are provided to suit the flange handle operating mechanism.
  • Continuously hinged doors may be removed by pulling the hinge pin.
  • Pad lock defeater handle mechanism is provided along with latching rods and interlock brackets.
  • Collar studs are provided for mounting inner panels.
  • A removable 12 gauge inner panel is included.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided.

  • Designed to house the following safety disconnect equipment:
    • ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
    • Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
    • C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
    • General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
    • Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
    • Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices
  • Refer to the Type 12 Wallmount Selection Guide.

USMCA Compliant: Yes
IP Rating: IP66
REACH Compliant: Yes
Panel: Included
Type Rating: type-13, type-4
Standards:
  • UL 508A Type 4, 12, and 13
  • CSA Type 4, 12, and 13
  • Complies with
    • NEMA Type 4, 12 and 13
    • IEC 60529, IP66
    • Appropriate components are required to maintain these standards.
