Learn more about Cruxial RS Server Rack Cabinet

The highly versatile RS Series Server Rack / Cabinet is available in hundreds of configurations that meet your needs. This quality rack server cabinet is made in the USA of American finished steel.

Why do we call this cabinet series Cruxial™?
Because your IT department drives the success of your company. Without adequate support your IT equipment is not able to operate at top efficiency. This server rack is designed for versatility and growth. There are built-in features which make your life easier and your equipment fit better. For years.

Planned obsolescence is not part of Rackmount Solutions' product development mentality. We focus on U so you can confidently buy, rack and move on to your next project.

***Custom / Made to Order / 2+ Week Lead Time / Non-Returnable***

RS Server Rack Cabinets Feature:

  • Due to available customization, these rack server cabinets are produced at time of order resulting in lead time.

  • 3 sets of "L" shaped adjustable square hole rails on a patented aluminum extruded welded frame. Mounting rails are independent of the frame so you can set your front rails back, move 2nd set for 4-point mount items and your 3rd set for your very longest piece of equipment.

  • Rails move in infinite measurement, not 1" slots.

  • Base, low-profile casters and leveling feet standard on every server rack. Bolt down bases available on request.

  • Externally removable lockable side panels. For PCI compliance order internally removable side panels at no additional charge. Ask your account manager or call toll free (800) 352-6631.

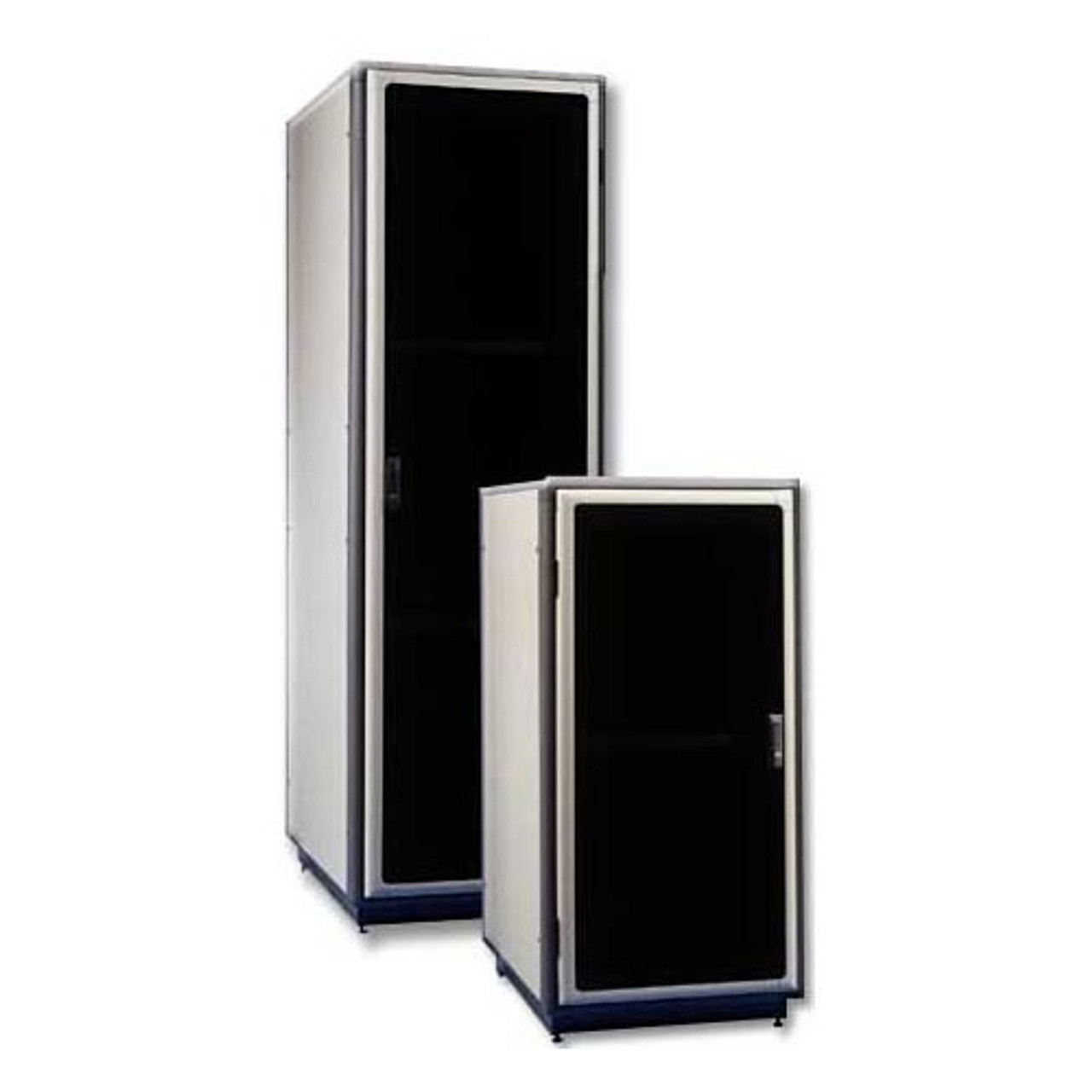

  • Light gray (almost clear) Lexan front door with lockable swing handle. (Photo shows optional dark lexan if secure sight is desired)

  • Vented Steel rear door with changeable airflow panels and lockable swing door handle.

  • Solid top panel with (2) 4.5" holes with grommets and cover plates for cable management. Other styles/fans available

  • Textured powder coat finish. Mix or match frame and panels for a customized look (shown is granite gray frame with pearl white sides/doors.)

  • Made in the USA. Specify RoHS version at time of order.

  • Server rack ships completely assembled. Unwrap and rack.

The Cruxial RS Server Rack series is available in over 864 configurations. You can choose from M6 square hole vertical rack rails, 10-32 or 12-24. There are dozens of tops, bottoms, side panels and cable management enhancements.

We have listed below some of the more commonly ordered server rack cabinet sizes in 30", 36" and 42" usable depths.

Call toll free (800) 352-6631 or email sales@rackmountsolutions.net to discuss which configuration meets your exact needs.

Custom features for this server rack are available on request.

Heights: 14u, 20u, 24u, 30u, 35u, 40u, 42u, 44u, 48u
Widths: 19", 23", 24", 28"
Depths: 24", 30", 36", 42"
Weight Capacity: 2,500 lbs. static (1,200 lbs. on casters)

This IT rack server cabinet configuration comes in 144 heights, widths and depths, as well as numerous colors. (See chart below the shopping cart). Call your sales manager at toll free (800) 352-6631 to discuss your exact needs.
