How to Measure Adjustable Angle Brackets

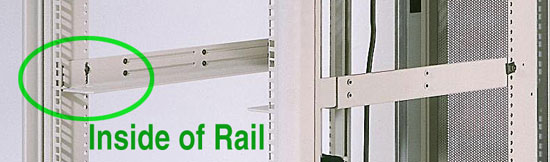

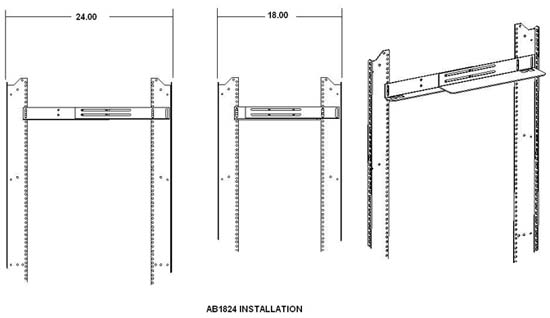

The angle brackets mount to the inside of your "L" shaped rail. They do not mount to the face of your rack rails. The depth of this inside measurement may vary on different racks. It is rare to have a rack that these angle brackets do not fit. However, to double-check your rack, the minimum and maximum position is as follows
