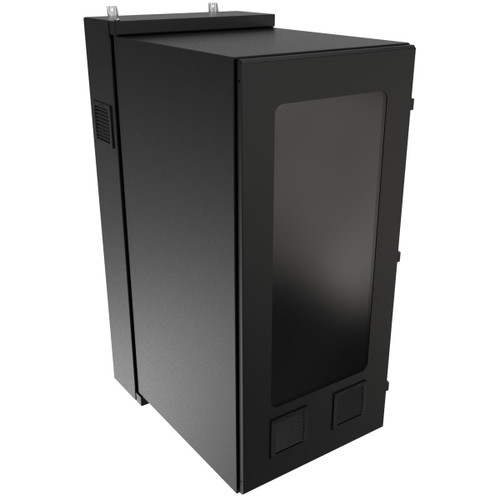

27U 24W 36D NWC Window Filters Enclosed Wall Rack

Features

• Dual access to equipment via the double hinge design for indoor industrial applications.
• The main body and door swing from right-to-left.
  • The entire cabinet can be flipped 180 degrees to mount and swing left-to-right.
• Available in three options:
  • "N" Version comes without climate control or cutouts.
  • "F" Version includes rear and door filters that maintain UL Type 12 ratings. Compatible with fan kit DNFK1AC120 for rear always-on hot air exhaust and DTFK1AC120E for thermostat-controlled air exhaust.
  • "A" Version comes bundled with a 900-1300 BTU DTS3021A115LG air conditioner (shipped inside the cabinet) along with a cord.
• All options are available with a solid or window door.
• The door is removable and swings more than 120 degrees.
• The middle section swings to 130 degrees to access the rear pan, allowing for easy maintenance.
• Both door and middle section include draw-latching locks, keyed alike.
  • Optional padlock kit available.
• The heavy-duty rear pan is constructed in 14-gauge welded steel and features a hinge pin for easy installation.
• A heavy-duty wall mounting back pan can be used for cable entry.
• The rear of the enclosure include factory-installed external mounting feet positioned sixteen (16) inch centers.
• Two (2) pairs of adjustable depth threaded 10-32 EIA-compliant rack rails.
  • Includes starter pack of SCREW1032-50
• Bonding studs are provided on the door, body and back pan.
• Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit is sold separately.

Specifications

• Constructed in 14-gauge steel.
• Window door constructed with UV-resistant polycarbonate material.
• UL Listed 2416 Type 12 rated with a load rating of 350 lbs (158 kg).
  • Complies with NEMA Type 12.
• Independently tested to IEC 60529 and IP56.
• Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• Rack rails are drilled and tapped 10-32 to EIA 19" standards and are finished in a smooth powder coat.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements when the door is installed.
• Finished in a textured RAL7035 light gray or RAL9005 black powder coat.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
